shape5mm [Te2]. ♀♂: (4-)4.5-5 (-5.3) mm [P3]. 4.0 - 5.0mm [T14][T16]. ♂ 4.5 - 5.3 mm [T24].
colorBlack [Te2]
head
shapeThe head is transverse, roundly narrowed posteriorly. Face half as long as wide. Clypeus rounded along the anterior margin, with two small fossae at the base. The ocelli are small, the distance between them and the edge of the eyes is at least three times the diameter of the ocellus. The occiput is slightly notched. The temples are slightly shorter than the transverse diameter of the eye. Palps not particularly short. The last two segments are equal to each other [Te2]. ♀♂: temple in dorsal view rounded [P3]. Head roundly narrowed behind eyes, 1.1 times as wide as mesonotum, twice as wide as long. Temples equal in length to the transverse diameter of the eye. Base of ocellar triangle larger than OOL plus one ocellus diameter. POL is 3 times the diameter of the ocellus. The longitudinal diameter of the eye is 1.9 times the transverse one, twice the height of the malar space. Face width 2.2 times its height. The proboscis does not protrude. Maxillary palps equal to the height of the face with clypeus [T14].
sculptureThe head is densely rugose, dull. Face with sparse grayish hairs. Clypeus more slightly rugose, shining. Frontal impressions are wrinkled [Te2]. Head above with relatively fine striation (Fig. 3) [P3]. The face is finely and unevenly rugose, the vertex with small transverse rugae behind the ocelli [T14].
colorThe maxillary palp is reddish brown, the labial palp is dark brown [Te2].
antenna
shape ♀Antennae filiform, barely reaching the middle of the metasoma, 23-segmented; their last segments are beaded [Te2]. Antenna with 21-22 antennomeres. Penultimate flagellomere of female cubic [P3]. Antennae slightly longer than head and mesosoma combined; length of 3rd antennal segment 3 times its width; length of segments in its apical part equal to their width [T14].
colorAntennae black, scape only in front or mostly red [Te2]. Scape reddish yellow [P3].
mesosoma
shapeMesosoma as wide as head. Pronotum short. Prescutellar groove with sharp transverse notches, equal to one quarter of scutellum length. The propodeum with two lateral teeth and an incompletely bordered cell in the middle [Te2]. ♀: Mesosoma length 1.3 times its height. Propodeum with rather distinct transverse carina and small obtuse lateral teeth. ♂: The teeth of the propodeum are well developed [T14]. Propodeal denticles well developed [T24].
sculptureMesonotum at the posterior margin mostly coarsely rugose. Scutellum punctate in basal half, posteriorly rugose, shining. The propodeum is coarsely rugose. The sides of the entire mesosoma and propodeum segment are roughly rugose. Mesonotum with broad, coarsely wrinkled notauli and a longitudinal groove along the middle lobe. Proscutellum groove with sharp transverse notches, equal to one quarter of scutellum length [Te2]. Mesonotum before scutellum rough irregularly-wrinkled, scutellum with smooth sculpture, punctate, shining [T14].
color
legs
shapeThe femora and tibiae are slightly thickened [Te2]. Hind femur 3 times as long as wide. Hind tarsi longer than the hind tibia [T14].
sculptureThe hind coxae are rugose, dull [Te2].
colorLegs are reddish; coxae black, apex of hind tibiae and tarsi dark brown. ♂: Hind coxae dark brown at base [Te2]. Legs (except black coxae + trochanters) reddish yellow [P3]. Legs (except dark coxae) brownish-yellow or yellowish-brown, tarsus (except dark basitarsus) brown. Hind femora yellowish brown [T14]. Hind femora brownish-yellow [T5].
wings
shapeVein cu-a at an angle to CU, extending at a considerable distance behind the basal vein. r slightly longer than 3-SR. 1-RI is equal in length to the pterostigma [Te2]. Vein r nearly as long as 3-SR (Fig. 5) [P3]. Marginal cell 2.5 times as long as 2nd submarginal cell, 1-R1 as long as pterostigma or slightly shorter than it [T14].
colorThe wings are slightly smoky; tegulae, pterostigma and most of the veins are black [Te2]. The wings are slightly darkened. ♂: The veins M-CU and 1-M of the fore wing are colored lighter than other veins, yellowish [T24][T14].
metasoma
shapeThe metasoma is slightly longer than the mesosoma. The abdominal carapace is not rounded at the apex, its lower edge is visible along its entire length (fig. 1). [Te2]. Carapace in dorsal view 1.8-2 times (♀♂) as long as broad, usually somewhat more broadening. ♀: Carapace apically convex, i.e. not incised (Fig. 2). [P3]. Metasoma slightly widened posteriorly, apically slightly bent forward; metasomal length twice (or less than twice) its width [T14]. Length of metasoma less than twice width [T5].

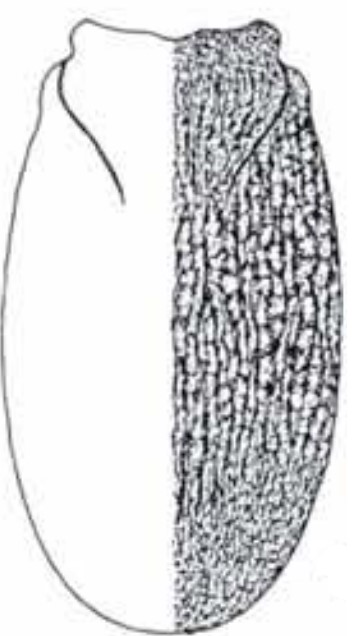

sculptureMetasoma longitudinally rugose in basal half with two sharp carinae in first quarter, irregularly rugose at apex [Te2]. Striation of carapace less strong and with more anastomoses (Fig. 4) [P3]. Metasoma with rather coarse sinuous longitudinal rugae, almost reaching its apex [T14].
colorThe metasoma is entirely black [T14].
♀ ovipositorOvipositor straight, equal to 1/5 the length of the metasoma [Te2]. The ovipositor is hidden [T14].
♂ apertureAperture transverse, four times as wide as high [Te2]. Apical aperture strongly transverse, slit-like, slightly less than the width of the metasoma [T14]. Aperture strongly transverse, occupying nearly entire width of metasoma [T5][T24].
other info
distributionNL [FE].
remarksIt is difficult to determine its systematic position now. Apparently it is close to Chelonus lugubris Wesm. [Te2]. In the western Palearctic only 3 species with light legs, and dark body without yellow abdominal spot: M. latrunculus, M. starki and M. radialis [T24].
Самка и самец. Тело и усики черные; основной членик усиков только спереди или большей частью красный. Ноги красноватые; тазики черные, вершина задних голеней и лапок темнокоричневые. Челюстные щупики красно-коричневые, губные щупики темнокоричневые.
Голова поперечная, кзади округло суженная, густо морщинистая, матовая. Лицо в два раза короче своей ширины с редкими сероватыми волосками. Наличник более слабо морщинистый, блестящий, по переднему краю округлый, в основании с двумя небольшими ямками. Лобные вдавления морщинистые. Глазки маленькие, расстояние между ними и краем глаз по крайней мере в три раза больше диаметра глазка. Затылок слабо выемчатый. Щеки едва короче поперечного диаметра глаза. Челюстные щупики не особенно короткие. Два последних членика их равны между собой. Усики нитевидные, едва доходят до середины брюшка, 23-члениковые; последие членики их четковидные.
Грудь морщинистая, по ширине равна голове. Переднеспинка короткая, обычная. Среднеспинка с грубо морщинистыми широкими парапсидами и продольной бороздкой вдоль средней лопасти, у заднего края она большей частью грубо морщинистая. Предщитиковая бороздка с резкими поперечными насечками, равна одной четверти длины щитика. Щитик в основной половине пунктированный, кзади морщинистый, блестящий. Промежуточный сегмент грубо морщинистый с двумя боковыми зубцами и неполностью окаймленной ячейкой посередине, кзади резко обрывистый. Бока всей груди и промежуточного сегмента грубо морщинистые.
Брюшко едва длиннее груди. Скорлупка брюшка на вершине незакругленная, нижний кант ее виден по всей длине (см. рисунок). Скорлупка брюшка в основной половине продольно морщинистая с двумя резкими килями в первой четверти, на вершине неправильно морщинистая. Яйцеклад прямой, равен 1/5 длины брюшка.
Крылья слабо дымчатые; крышечки крыльев, стигма и большая часть жилок черные. Поперечная субмедиальная жилка косая, отходит на значительном расстоянии за базальной жилкой. Первый отрезок радиуса едва длиннее второго. Наружный край радиальной ячейки но длине равен стигме.
Задние тазики морщинистые, матовые. Бедра и голени слегка утолщенные.
Самец отличается от самки следующими признаками: скорлупка брюшка на вершине с поперечным отверстием, высота которого в четыре раза короче ширины. Усики щетинковидные, 25-члени-ковые. Задние тазики в основании темнокоричневые. Длина 5 мм.
Распространение — СССР: Воронежская область, Савальское лесничество, 1 .VII. 1952 (В. Старк); Молдавская ССР, Чебручи, 28.VII. 1951 (Бичина); Семипалатинск, Ново-Шульба, 10.ѴІІ.1952 (Сливкина). Хозяева: Synanthedon (Sesia) formicaeforme Esb., Agrilus subauratus Gebl. (Воронеж), Sciapteron tabaniformis Rott. (Семипалатинск), Laspeyresia pomonella L. (Молдавия). Ch. starki sp. n. характеризуется половым диморфизмом. Определить систематическое его положение сейчас трудно. Повидимому, все же он близок к Chelonella lugubris Wesm., который, однако, описан очень кратко, только по самцу. Ch. starki представлен серией самцов из ряда пунктов, и они хорошо выделяются иной окраской ног.
Вид назван в честь известного советского энтомолога проф. В. Н. Старка.
Data used in the multi-access key
These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this pdf.
morphology
basic information
female
male
body length (mm):
(4) 4 - 5 (5.3)
(4) 4 - 5 (5.3)
number of antennal segments:
(20) 20 - 23 (24)
(24) 24 - 27 (28)
head, dorsal view
Head width : length
narrow, wide
narrow, wide
Temples narrowing - widening
narrowing, parallel
narrowing, parallel
Eye length : temple length
<= 0.75, 0.75 - 1.0, 1.0 - 1.25
<= 0.75, 0.75 - 1.0, 1.0 - 1.25
Roundness temple
medium, weak
medium, weak
POL : OD
2 - 3, 3 - 4
2 - 3, 3 - 4
Ocellar triangle shape
narrow
narrow
Excavation of head
15 - 25%
15 - 25%
head, lateral view
Head height : length
---
---
Eye height : length
short
short
Temple length : eye length
---
---
head, frontal view
Head width : height
---
---
Face width : height
wide
wide
Eyes converging ventrally
---
---
EH : MSL
---
---
Clypeus width : height
---
---
Clypeus extending above bottom of eyes
---
---
Tentorial pits
---
---
Shape of lower margin clypeus
convex
convex
antennae
Antennal shape
filiform, not widened
filiform, not widened
Segment 3 length : width
medium
---
Penultimate segment length : width
short
---
Length of antenna : length of body
2: short, 3: long
---
mesosoma, lateral view
Length : height
short
short
transverse carina
well developed
well developed
lateral teeth
weak, small, short, present, well developed
weak, small, short, present, well developed
mesosoma, ventral view
Prepectal carina lamelliform
indistinct
indistinct
legs
Hind femur length : width ratio
short
short
Hind tibia length : hind tarsus length ratio
short
short
Hind tibia (longest) spur length : metatars length ratio
wings
Vein 1-R1 length : pterostigma length
long
long
Vein r length : vein 3-SR length
short
short
Shape vein SR1 (straight / concave / convex)
straight or S-shaped
straight or S-shaped
S-shape vein SR1
not S-shaped
not S-shaped
cell M : cell Sm2
Sm2 small
Sm2 small
Pterostigma length : width ratio
short, medium
short, medium
Angle between radial vein (r) : vein 1-R1
sharp, medium
sharp, medium
metasoma, dorsal view
Length : width ratio of metasoma
short, medium
short, medium
Shape of metasoma
widest in middle
widest in middle
metasoma, lateral view
Length : height ratio of metasoma
---
---
posterior : anterior height ratio of metasoma
small, medium
small, medium
Position of maximum height
medium-posterior, posterior
medium-posterior, posterior
metasoma, ventral view
Metasoma posteriorly curved forwards
(almost) not incurved, just/slightly incurved
(almost) not incurved, just/slightly incurved
male apical aperture
Aperture width : metasoma width
no aperture
large
Aperture shape
n. a.
oval, elongate - slit
Median process shape
n. a.
---
sculpture
head
general coarseness
fine
fine
clypeus
coarseness punctation
---
---
density punctation
---
---
face
sculpture type
rugose
rugose
sculpture direction
irregular
irregular
vertex and temple
sculpture type
striate (striolate), striate-rugulose
striate (striolate), striate-rugulose
mesonotum
sculpture type
notauli slightly distinct
notauli slightly distinct
scutellum
middle
punctate
punctate
lateral
rugose / striate
rugose / striate
metasoma
base - mid sculpture
longitudinally rugose / rugose-striate
longitudinally rugose / rugose-striate
sculpture at apex
rugose, rugulose
rugose, rugulose
coarse / fine boundary
base (to 50%), mid (50 - 70%)
base (to 50%), mid (50 - 70%)
color
head
mandibles color pattern
---
---
palpi, lightest color
black, dark brown, brown, red
black, dark brown, brown, red
antennae
scapus, lightest color
brown, red, reddish or brownish yellow
brown, red, reddish or brownish yellow
segment 3 and 4, lightest color
black, dark brown
black, dark brown
legs
fore coxae lightest colour
dark
dark
fore femur lightest colour
medium dark, medium light
medium dark, medium light
fore femur color pattern
entirely light
entirely light
hind femur lightest colour
medium light
medium light
hind femur color pattern
entirely light
entirely light
hind tibia lightest colour
medium dark, medium light
medium dark, medium light
hind tibia color pattern
wide light base, entirely light
wide light base, entirely light
hind basitarsus lightest colour
dark, medium dark
dark, medium dark
hind tarsus segment 2-3 lightest colour
dark, medium dark
dark, medium dark
wings
middle veins lightest colour
dark, medium dark
dark, medium dark
basal veins lightest colour
light
light
metasoma
metasoma colour pattern
entirely dark
entirely dark
metasoma lightest colour
dark
dark
metasoma base, colour pattern
entirely dark
entirely dark
metasoma base, light spots
n.a.
n.a.
metasoma base, light band
n.a.
n.a.
Chelonus starki in published keys
T5: Tobias 1995a
A new subgenus and species of the genus microchelonus (hymenoptera, braconidae) with some comments on synonymy.
T24: Tobias 1990
Contribution to the Knowledge of the Genus Microchelonus Szépl. (Hymenoptera, Braconidae) in the Far East; Species with Dark Abdomen and Light Legs.
T4: Tobias, 1986
Key to the Insects of the European Part of the USSR Volume III. Hymenoptera. Part four. Chapter 16
P3: Papp 2004
A revision of Szépligeti's Microchelonus species described from Hungary (Hymenoptera: Braconidae: Cheloninae).
T14: Tobias, 2010
Palearctic species of Microchelonus Szépligeti (Hymenoptera: Braconidae, Cheloninae): key to species.
