colorA very dark black, quite dull, and rough [W].
head
shapeHead in dorsal view somewhat less transverse, 1.79 times as broad as long, temple slightly bulging (Fig. 75, 34) [P1][P3]. The head is slightly dilated behind the eyes, with swollen temples. Temples as long as transverse eye diameter, head 1.8 times as long as wide. OOL almost twice OOL, distance between anterior and posterior ocelli equal to ocelli diameter. Face width 1.8 times its height. The malar height is equal to the basal width of the mandible [T14].
sculptureOnly the clypeus is finely punctated [W]. The head is irregularly rugose [T14].
shape ♂A little shorter than the body, uniformly setaceous, with 24 segments [W]. Antennae almost as long as body, 24-segmented; length of 3rd segment 3 times its width [T14].
colorThe antennae are black [W].
mesosoma
shapeThe propodeum with two strong teeth [W]. Mesosoma length 1.65 times its height. Propodeum with a pair of lateral tubercles [T14]
sculptureMesosoma rugose. Scutellum weakly punctate, shining. Propodeum coarsely rugose [Te1]. The mesonotum is irregularly rugose [T14]. The metasoma is gently longitudinally rugose [T14].
color
legs
shapeThe legs are thin [W]. Hind femur 3.5 times as long as wide. Hind tibia and tarsi of equal length [T14].
sculpture
colorLegs yellow [P1]. The coxae and trochanters are black; femora and tibiae are yellow, the middle of mid tibiae and base and apex of hind tibiae are black. Tarsi are black [W]. Legs are mostly brownish yellow. Coxae and hind femora entirely dark-colored [T14].
wings
shapePterostigma clearly three times as long as wide, radial cell short, along metacarp one-third shorter than length of pterostigma (Fig. 79). Pterostigma issuing radial vein distally from its middle, 3-SR only a bit shorter than r, SR1 arched, 1-R1 one-fourth shorter than pterostigma (Fig. 79) [P1]. Pterostigma 3 times as long as wide, 1-R1 one-third shorter than pterostigma (Fig. 37) [P3]. The radial vein extends from the middle of the pterostigma;3-SR is slightly shorter than r. R1 is slightly shorter than pterostigma [T14].
colorThe wings are completely dark, with veins and stigma black [W]. Smoky wings, pterostigma black [Te1].
metasoma
shapeCarapace apically less incurved, i.e. ventral cavity of carapace only somewhat shorter than carapace itself (Fig. 82 i ). Posteriorly evenly broadening carapace [P1]. Metasoma widened towards posterior third, twice as long as wide [T14].
sculptureThe rugosity of the metasoma is very distinct at the base and quite regularly longitudinal [W]. Metasoma at base with sharp longitudinal rugae [Te1]
color
♀ ovipositorFemale unknown [P1].
♂ apertureApical foramen of male carapace three times as wide as high (Fig. 83, 35) [P1][P3]. At the end of the metasoma a large transversal fissure [W]; The aperture is elongated-oval, noticeably wider than half the width of the metasoma; the width is 3 times its height [T14].
other info
distributionBE, DFE, FR, GB, NL, PL, SE [FE].
remarksThe female of M. lugubris is unknown. The taxonomic position of this species will unambiguously be cleared up only when the female is discovered. On the basis of our present knowledge among the European Microchelonus species known by their females there is not a single species with similar features displayed by the male M. lugubris, consequently, we can not suppose a conspecificity with any Microchelonus species known either by the female or male only. Of course, there is a possibility that the female of M. lugubris is transitional to the genus Chelonus by its antenna with more than 16 antennomeres. If so, M. lugubris increases the number of the transitional forms between the genera Chelonus and Microchelonus (further details see in the introductory chapter of Microchelonus). 2. Though the male of M. lugubris was described more than one-and-a-half centuries ago we know this species on the basis of its male holotype only. It seems a very rare species which is very difficult to recognize considering its description given by WESMAEL [P1].
hosts
figures
fig. 1: head in dorsal view (Papp 1995)
fig. 2: head in lateral view; (Papp 1995)
fig. 3: temporal and hypostomal carinae, arrow indicates their unification (Papp 1995)
fig. 4: propodeum in lateral view (Papp 1995)

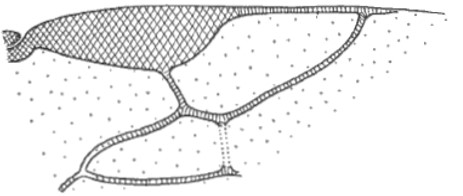

fig. 5: distal part of right fore wing (Papp 1995)

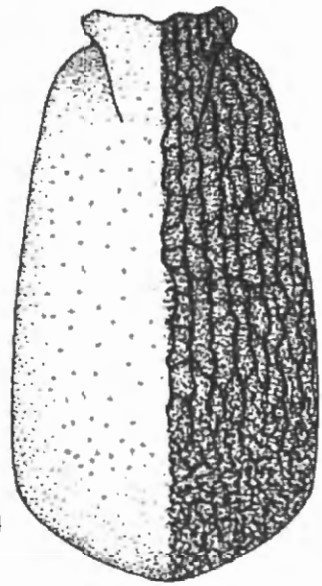

fig. 6: carapace in dorsal view (Papp 1995)
fig. 7: carapace in lateral view (Papp 1995)
fig. 8: carapace in ventral view (Papp 1995)
fig. 9: apical foramen of male carapace (Papp 1995)
Niger, rugosus, pedibus subgracilibus rufis, coxis, trochanteribus, tibiis posterioribus basi et apice, tarsisque nigris; alis fuscis; metathorace bidentato; abdominis apice rima transversa hiante, ♀. 1 1/2 li.
Les antennes sont noires, un peu moins longues que le corps, uniformément sétacées (de vingt-quatre articles). Tout le corps est d’un noir très-foncé, tout-è-fait terne, et rugueux; le chaperon seul est finement pointillé; le métamesosoma est fortement bidenté. Les rugosités de l’metasoma sont très-marquées vers la base et assez régulièrement longitudinales; prés de son extrémité il offre une grande fente transversale, entr’ouverte, destinée A la sortie de la tarière. Les pieds sont peu épais; les hanches et les trochanters sont noirs; les cuisses et les jambes sont fauves; les jambes des deux dernières paires sont noires A la base et A l’extrémité. Les tarses sont noirs. Les ailes sont entièrement obscures, avec les nervures et le stigmate noirs.
J’ai pris un seul individu de cette espèce, au mois prés de Bruxelles
Observation. — Je ne sais si je dois regarder comme mâle de cette espèce , un individu long de 1 1/4 li., de même couleur ( excepté la base des quatre jambes postérieures qui n’est pas noire) et un peu plus finement rugueux ; l’extrémité de l’metasoma n’a pas d’ouverture transversale; mais les antennes n’ont que 22 articles, tandis que la femelle que je viens de décrire en a 24.
Data used in the multi-access key
These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this pdf.
morphology
basic information
female
male
body length (mm):
(3.2) 3.2 - 3.8 (4)
(3.2) 3.2 - 3.8 (4)
number of antennal segments:
16
23 - 25
head, dorsal view
Head width : length
narrow
narrow
Temples narrowing - widening
parallel, widening
parallel, widening
Eye length : temple length
<= 0.75, 0.75 - 1.0
<= 0.75, 0.75 - 1.0
Roundness temple
very strong, strong
very strong, strong
POL : OD
2 - 3
2 - 3
Ocellar triangle shape
very narrow
very narrow
Excavation of head
15 - 25%
15 - 25%
head, lateral view
Head height : length
short
short
Eye height : length
long, very long
long, very long
Temple length : eye length
short, long
short, long
head, frontal view
Head width : height
---
---
Face width : height
narrow
narrow
Eyes converging ventrally
---
---
EH : MSL
---
---
Clypeus width : height
---
---
Clypeus extending above bottom of eyes
---
---
Tentorial pits
---
---
Shape of lower margin clypeus
---
---
antennae
Antennal shape
---
filiform, not widened
Segment 3 length : width
---
medium
Penultimate segment length : width
---
---
Length of antenna : length of body
---
3: long, 4: very long
mesosoma, lateral view
Length : height
medium, long
medium, long
transverse carina
---
---
lateral teeth
well developed
well developed
mesosoma, ventral view
Prepectal carina lamelliform
indistinct
indistinct
legs
Hind femur length : width ratio
medium
medium
Hind tibia length : hind tarsus length ratio
medium
medium
Hind tibia (longest) spur length : metatars length ratio
