shapeDistance between posterior ocelli 3 times diameter of ocellus. Longitudinal diameter of eye 1.5 times transverse diameter, and 0.77 width of face. Height of face 0.56 width, 1.2 times height of clypeus. Distance between tentorial pits 1.2 times distance from tentorial pit to eye. Maxillary palpi equal to height of face with clypeus [T18]. Malar space 0.4-0.5 times longitudinal eye diameter. Head strongly roundly narrowing behind eyes [T9]. Malar space equal to half the longitudinal diameter of the eye. POL is 3 times the diameter of the eye. Head 1.1 times as wide as mesoscutum, roundly narrowed behind eyes, 1.8 times as wide as long. Temples equal to the transverse diameter of the eye. Width of ocellar triangle greater than OOL by diameter of ocellus. Longitudinal eye diameter 1.5 times transverse one. Face width 1.8 times its height. Maxillary palps equal to height of face with clypeus [T14].
sculptureClypeus coarsely punctate, with transverse rugae in lower part and on sides, and shiny [T18]. Vertex and middle part of face with small transverse rugae. Clypeus coarsely punctured, with transverse rugae in lower part [T14].
colorPalpi dark brown [T18].
antenna
shape ♀Antennae with dense, small setae, and matt [T18]. Antennae filiform. Apical segments 1.3-1.5 times as long as wide (or almost twice as long as wide in Finnland). Apical antennal segments cylindrical or with depression, uncompressed [T9]. Antennae with dense small hairs, matt, as long as head and mesosoma combined; length of 3rd segment 3 times its width, preapical segment equal to its width [T14].
shape ♂Antennae filiform, as long as head, mesosoma and half metasoma: 21-22-segmented [T18]. Antennae 20-21-segmented, equal to the total length of head, mesosoma and half of metasoma [T14].
color
mesosoma
shapeLength of mesosoma 1.5-1.6 times height; lateral teeth of propodeum weakly obtusely angulate, transverse ridge not distinct [T18][T14].
sculptureMesonotum lacking developed longitudinal ridge in middle and with weak transverse rugules anteriorly. Scutellum coarsely rugulose-punctate and matt [T18]. Scutellum densely rugose-punctate, dull [T9]. Mesonotum with weak transverse rugae in front, irregularly cellular-rugose in front of scutellum. Scutellum coarsely rugose-punctate, matte [T14].
color
legs
shapeInner spur of hindtibia 0.4 length of 1st hindtarsal segment [T18]. Hind femur 3 times as long as wide. Hind tibia longer than hind tarsus [T14].
sculpture
colorApices of fore femora and fore tibia brownish yellow. Apices of mid femora and basal half of mid tibia, 1st hind tarsal segment yellowish brown. Tarsi, apical half of mid tibia, and entire hind tibia brown [T18]. Hind tibia entirely dark, occasionally slightly yellowish in the middle [T9]. Legs mostly dark-colored, hind tibiae brown. 1st segment of hind tarsus yellowish-brown [T14].
wings
shape1-R1 0.67 times length of pterostigma; 3-SR 1.5 - 2.0 times as long as r, 0.33 - 0.50 length of SR1 [?]; 0.50-0.67 times 2-SR. SR1 at apex convex outwardly or straight. 1-CU1 = 0.3-0.6 times cu-a [T18]. 1-R1 as long as, or slightly shorter than, pterostigma [T9]. The marginal cell of the fore wing is less than twice as large as the 2nd submarginal cell;1-R1 is 0.67 times as long as the pterostigma [T14].
colorWings weakly darkened [T18][T14].
metasoma
shapeLength of metasoma 1.9-2 times width [T18][T9]. Metasoma oval, widest near the middle [T9]. Metasoma elongated-oval, apically bent forward by 0.5 times as long as 1st segment of hind tarsus, 1.9–2 times as long as wide [T14].
sculptureMetasoma with weakly sinuate and faintly anastomosing longitudinal rugae extending as far as its apical third [T9]. Rather coarse at base [T14].
color
♀ ovipositorOvipositor hidden or protruding as far as length of 1-2 hindtarsal segments [T18][T14].
♂ apertureOpening at apex of metasoma very small, almost punctate, round or weakly oval [T18]. Aperture is very small, round or slightly transverse [T14].
other info
distributionNL [FE].
remarks
hosts
figures

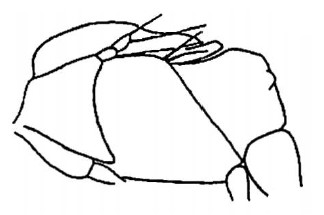

fig. 1: mesonotum in lateral view (Tobias 1994b)
fig. 2: part of forewing (holotype) (Tobias 1994b)
Microchelonus irritus Tobias, sp. n. (Figs. 29-31).
This species is close to M. sordipalpis sp. n. and M. luteipalpis sp. n. described above and differs from them in characters cited in the key to species, and also in less developed transverse ridge and teeth of propodeum. Furthermore, from the latter species it differs in having the basal vein less distant from nervulus.
♀. Length of body 2.6-2.9 mm. Distance between posterior ocelli 3 times diameter of ocellus. Longitudinal diameter of eye 1.5 times transverse diameter, and 0.77 width of face. Height of face 0.56 width, 1.2 times height of clypeus. Distance between tentorial pits 1.2 times distance from tentorial pit to eye. Maxillary palpi equal to height of face with clypeus. Antennae with dense, small setae, and matt Length of mesosoma 1.5-1.6 times height; lateral teeth of propodeum weakly obtusely angulate, transverse ridge not distinct Anterior margin of radial cell 0.67 pterostigma; 2nd segment of radial vein 1.5-2 times as long as 1st segment, 0.33-0 JO length of 2nd segment; 0.50-0.67 1st radiomedial vein. 3rd segment of radial vein at apex convex outwardly or straight Nervulus distant from basal vein by 0.3-0.6 length. Inner spur of hindtibia 0.4 length of 1st hindtarsal segment Length of metasoma 1.9-2 times width. Ovipositor hidden or protruding as far as length of 1-2 hindtarsal segments.
Clypeus coarsely punctate, with transverse rugae in lower part and on sides, and shiny. Mesonotum lacking developed longitudinal ridge in middle and with weak transverse rugules anteriorly. Scutellum coarsely rugulose-punctate and matt.
Palpi dark brown. Apices of forefemora and forelibia brownish yellow. Apices of midfemora and basal half of midtibia, 1st hindtarsal segment yellowish brown. Tarsi, apical half of midtibia, and entire hindtibia brown. Wings weakly darkened.
Other characters as in M. luteipalpis sp. n.
♂. Length 2.9-3.4mm. Antennae filiform, as long as head, mesosoma and half metasoma: 21-22-segmented. Opening at apex of metasoma very small, almost punctate, round or weakly oval.
Holotype: ♀, Hebrew Autonomous Province, 20 km NW of Amurzet, steppe slope, 17.VI.1985 (Kasparyan). Paratypes: 2 ♀s, and 1 ♂ with data as in holotype; 1 ♂, same locality, 17.IV, 2 ♂s same locality, airport, steppe meadow, 16.VI, 1 9, 1 ♂, meadow, 16.VI. 1985 (Belokobyl’skiy). Maritime Terr.: 1 vicinity of Spassk. broadleaf forest, 30.VI. 1985 (Belokobyl’skiy); 1 ♂, same locality, Quercus sp. and mixed forest, 30.VI. 1985 (Kasparyan).
The Holotype of M. minutes[sic] sp. n. in venation of forewing (Fig. 30) rather considerably differs from other specimens in the long 2nd segment of the radial vein and more postfurcal nervulus (distant from basal vein by 0.6 its length, usually only 0.3). However, other specimens collected on the same day (2 ♀ s, 1 ♂) are completely identical in all remaining characters, which allows with certainity to consider these differences as vriation within one species.
Data used in the multi-access key
These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this pdf.
morphology
basic information
female
male
body length (mm):
(2.5) 2.5 - 3.3 (3.5)
(2.5) 2.5 - 3.3 (3.5)
number of antennal segments:
16
20 - 22
head, dorsal view
Head width : length
narrow, wide
narrow, wide
Temples narrowing - widening
strongly narrowing, narrowing
strongly narrowing, narrowing
Eye length : temple length
---
---
Roundness temple
strong, medium, weak
strong, medium, weak
POL : OD
2 - 3, 3 - 4
2 - 3, 3 - 4
Ocellar triangle shape
---
---
Excavation of head
---
---
head, lateral view
Head height : length
---
---
Eye height : length
---
---
Temple length : eye length
---
---
head, frontal view
Head width : height
---
---
Face width : height
narrow
narrow
Eyes converging ventrally
---
---
EH : MSL
short, long
short, long
Clypeus width : height
---
---
Clypeus extending above bottom of eyes
---
---
Tentorial pits
small
small
Shape of lower margin clypeus
---
---
antennae
Antennal shape
filiform, not widened
filiform, not widened
Segment 3 length : width
medium
---
Penultimate segment length : width
short, medium
medium, long
Length of antenna : length of body
2: short
3: long
mesosoma, lateral view
Length : height
medium, long
medium, long
transverse carina
weak, indistinct
weak, indistinct
lateral teeth
weak, small, short
weak, small, short
mesosoma, ventral view
Prepectal carina lamelliform
indistinct
indistinct
legs
Hind femur length : width ratio
short
short
Hind tibia length : hind tarsus length ratio
long
long
Hind tibia (longest) spur length : metatars length ratio
short
short
wings
Vein 1-R1 length : pterostigma length
medium, long
medium, long
Vein r length : vein 3-SR length
short
short
Shape vein SR1 (straight / concave / convex)
convex
convex
S-shape vein SR1
apically convex
apically convex
cell M : cell Sm2
Sm2 large, Sm2 medium
Sm2 large, Sm2 medium
Pterostigma length : width ratio
short, medium
short, medium
Angle between radial vein (r) : vein 1-R1
medium
medium
metasoma, dorsal view
Length : width ratio of metasoma
medium, long
medium, long
Shape of metasoma
---
---
metasoma, lateral view
Length : height ratio of metasoma
---
---
posterior : anterior height ratio of metasoma
---
---
Position of maximum height
---
---
metasoma, ventral view
Metasoma posteriorly curved forwards
---
---
male apical aperture
Aperture width : metasoma width
no aperture
small
Aperture shape
n. a.
(nearly) round, oval
Median process shape
n. a.
horizontal, nearly round
sculpture
head
general coarseness
---
---
clypeus
coarseness punctation
coarsely punctate
coarsely punctate
density punctation
---
---
face
sculpture type
rugose
rugose
sculpture direction
transverse-longitudinal
transverse-longitudinal
vertex and temple
sculpture type
transverse rugulose
transverse rugulose
mesonotum
sculpture type
---
---
scutellum
middle
---
---
lateral
---
---
metasoma
base - mid sculpture
longitudinally rugose / rugose-striate
longitudinally rugose / rugose-striate
sculpture at apex
rugulose
rugulose
coarse / fine boundary
mid (50 - 70%)
mid (50 - 70%)
color
head
mandibles color pattern
---
---
palpi, lightest color
black, dark brown
black, dark brown
antennae
scapus, lightest color
black, dark brown
black, dark brown
segment 3 and 4, lightest color
black, dark brown
black, dark brown
legs
fore coxae lightest colour
dark
dark
fore femur lightest colour
medium light
medium light
fore femur color pattern
tip light
tip light
hind femur lightest colour
dark
dark
hind femur color pattern
entirely dark
entirely dark
hind tibia lightest colour
dark, medium dark, medium light
dark, medium dark, medium light
hind tibia color pattern
entirely dark, narrow light ring, entirely light
entirely dark, narrow light ring, entirely light
hind basitarsus lightest colour
medium light
medium light
hind tarsus segment 2-3 lightest colour
medium dark
medium dark
wings
middle veins lightest colour
medium dark, medium light
medium dark, medium light
basal veins lightest colour
medium light
medium light
metasoma
metasoma colour pattern
entirely dark
entirely dark
metasoma lightest colour
dark
dark
metasoma base, colour pattern
entirely dark
entirely dark
metasoma base, light spots
n.a.
n.a.
metasoma base, light band
n.a.
n.a.
Chelonus irritus in published keys
T9: Tobias 1999
Species of the Genus Microchelonus, Closely Related to M. atripes (Hymenoptera, Braconidae), from the Western Palaearctic.
T18: Tobias 1994b
Far-eastern braconids of the genus Microchelonus Szepl. (Hymenoptera, Braconidae). Dark-coloured species with elongate abdomen.
T14: Tobias, 2010
Palearctic species of Microchelonus Szépligeti (Hymenoptera: Braconidae, Cheloninae): key to species.
