Chelonus inanitus

Chelonus inanitus

authorLinnaeus, 1767

synonyms

body

shapeLength 5 - 9 mm. (6.3mm [M], 8 - 9 mm [Ay1], 5.2 - 6.0 [E1], 6.3 - 9.4 [W], 6.9 - 8.1 [N], 4 - 7 [H2], 6 - 7mm [Zh1]

colorBlack; Body coarsely rugose, somewhat shining, beset with short, scattered, pale hairs [M].

head

shapeVertex transverse, not widened behind the eyes, cheeks not dilated ; clypeus Insinuated, elevated [M]. POL 1.1–1.2 times as long as OOL (Fig. 11) [E1]. Temples shorter than eye [Zh1].

sculptureHead reticulate-rugose, striate-rugose round the orbits and cheeks; clypeus shining, punctulate; frontal fovea rugose, hardly more shining than the rest of the head, geminated by a carina [M]. Usually with not more than five transverse rugae on vertex behind ocelli [Ay2]. Vertex with coarse transverse striae behind ocelli (Fig. 11) [E1]. Vertex with rough linear rugae;temple and face with rough reticular rugae;

colorPalpi black; mandibles reddish at the tips [M].

antenna

shape ♀Antennae setaceous, shorter than body [L]. Shorter than the body, compresso-dilated beyond the middle, the last 5 - 6 segments rapidly decreasing in size, 23—24- (rarely 25-) segments [M]. Antenna not much longer than half body size, setaceous, 25-28 segments easy to distinct [H]. 26 segments, obviously thickened from the middle [Zh1]. 24 - 26 segments [T4][T16].

shape ♂Antenna ♂ as long as the body, setaceous, 27 - 30- (usually 28-) segments [M].

color

mesosoma

shapePropodeum short, transverse, truncated, 4-denticulate [M]. Propodeum with 2 diverging longitudinal carina (with in between sometimes a third), and sideways pointed hind corners; in front of these two more blunt ones [H]. Propodeum with distinct transverse carina and pointed side teeth [Zh1].

sculptureScabrous [L]. Propodeum reticulate-rugose. Mesonotum reticulate-rugose, the reticulations coarser behind, and falling into irregular striae before the scutellum. Scutellum smooth in the middle, except two or three faint striae, reticulated and margined all round ; the basal fovea cancellated [M]. Mesosoma with 3 longitudinal impressions and large punctures, making it seem latticed. Scutellum with double lateral carina, in front deeply notched, in the middle smooth, shiny, barely finely punctated [H]. Mesonotum reticulate-rugose, coarser before scutellum. Propodeum roughly reticulate-rugose. Metanotum roughly reticulate-rugose [Zh1].

color

legs

shape

sculpture

colorLegs yellow-brown except tibiae black [L]. Legs orange-brown, coxae, trochanters, femora at the base more or less, and 4 posterior tibiae at the apex sometimes, black; tarsi dark, black at the tips, the first joint brownish-yellow with the apex dark; spurs pale [M]. Hind femora brownish red [Ay1].

wings

shapeSR1 of the fore wings curved, concave outwardly; radius of the hind wings sinuated. Wingspan 11.3mm [M]. Vein r of fore wing distinctly angled with vein 3-SR (Fig. 13) [E]. 1-CU1 = 0.5 times 2-CU1 [Te1].

colorVein 1-M of fore wing yellowish [E]. Wings smoky-transparent, nearly transparent at the base; a curved whitish streak under the stigma, which together with the outer veins is dark; costa and parastigma yellow-brown; M+CU1 and other basal veins of all the wings brownish-yellow [M].

metasoma

shapeOblong and oval [L]. Metasoma ♂ depresso-cylindrical; viewed laterally, clavate; obtuse behind, rather longer than the head and mesosoma, the sides subparallel, very slightly sinuated near the basal tubercles; of the ♀ shorter, the sides somewhat curved, and the apex rounded [M]. Apex of metasomal shield on lower side with deep and wide groove; apex of metasomal shield curved forward [Ay2].

sculptureThe base covered with coarse reticulations arranged in striae, two of which are often more elevated, forming carinae; the reticulations become shorter and finer posteriorly, so that the apex is more shining, and almost punctate [M]. The basal half of the metasoma has longitudinal rugae; the apical part is roughly irregularly rugose [Te1].

colorTwo basal whitish transparent spots [L]. Metasoma with or without 2 basal yellowish rounded spots [M]. ♂ rarely with basal spots, usually completely black [H2].

♀ ovipositorOvipositor rigid, recurved, hardly longer than body [L]. Ovipositor ♀ brownish-yellow with black valves, falcate, concealed in repose, but capable of being protruded a little beyond the anus [M]. The ovipositor is thick, strongly curved upward [Te1]. Ovipositor long and thick, distinctly falcate [AyB1].

♂ aperture

other info

distributionWestern Europe [T4]. BE,CH,DE,CZ,DK- D,FR-F,GB-G,IE,NL,PL,SE [FE]

remarks

hostsAethes francillana F., Eucosina iripoliana Barr., E. aemulana Schlaeg. (Tortricidae), Sylepta derogata F., Ostrinia nubilalis Hbn. (Pyraustidae), Etiella zinckenella Tr. (Phycitidae), Oligia literosa Hw, Photedes elymi Tr. (Noctuidae) [T13].

figures

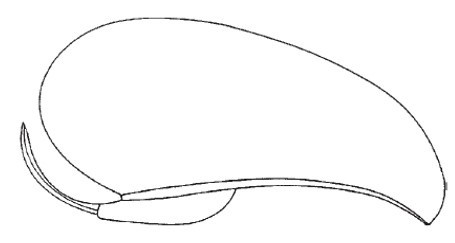

fig. 1: Metasoma, lateral view (Aydoğdu & Beyarslan 2002)	fig. 2: marginal cell of fore wing (van Achterberg 1982)	fig. 3: 16th antennal segment (van Achterberg 1982)
fig. 4: metasoma, dorsal aspect (van Achterberg 1982)	fig. 5: apex of metasoma, dorso-apical aspect (van Achterberg 1982)	fig. 6: propodeal tubercle (van Achterberg 1982)

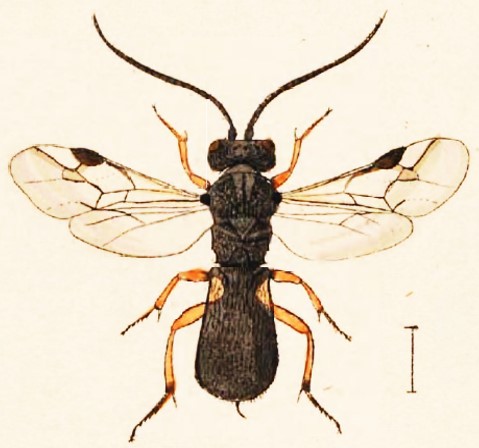

fig. 7: apex of metasoma, lateral aspect (with ovipositor exerted, usually more or less retracted) (van Achterberg 1982)	fig. 8: apex of antenna (van Achterberg 1982)	fig. 9: habitus (Herrich 1838)

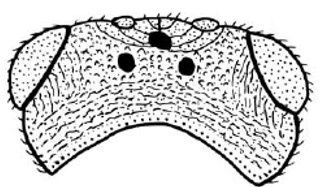

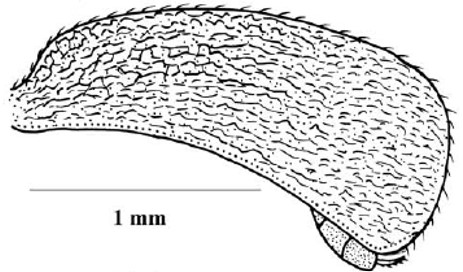

fig. 10: apex of metasoma (Herrich 1838)	fig. 11: head, dorsal view (Edmardash et al. 2011)	fig. 12: metasoma, lateral view (Edmardash et al. 2011)
fig. 13: fore wing (Edmardash et al. 2011)	fig. 14: apex of metasoma, lateral view (Tobias 2000)	fig. 15: apex of metasoma, lateral view (Tobias 1972a)

references

code	reference	type of info	named as
A1	van Achterberg 1982	f
AyB1	Aydoğdu & Beyarslan 2002	kf
Ay1	Aydoğdu 2008	k
E1	Edmardash et al. 2011	k
H	Herrich 1838	df
H2	Hellen 1958	dk
L	Linné, 1767	T	Cynips inanita
M	Marshall 1885	k
N	Nees 1834	d
S1	Szepligeti 1908	k
S2	Szepligeti 1896a	d
S4	Szepligeti 1898	k
Te1	Telenga 1941	dkf
Th	Thomson 1874	d
T13	Tobias 2000	k1f
T16	Tobias 1972a	kf
T4	Tobias 1986	kf
W	Wesmael 1835	d
Zh1	Zhang 2008	dk
FE	van Achterberg 2021	Fauna Europaea
legend:	Type description \| Redescription \| description \| in key \| comment \| nom. nov. \| figure(s) \| photo(s)

links

Fauna Europaea

photos

type description

Linné, 1767

inanita.

19. C? niger, abdomine uniarticulato antice utrinque macula fenestrata, pedibus ferrugineis.

Habitat Upsaliæ, C. G, Kækeritz.

Corpus magnitudine formica rufæ toto coelo a reliquis diversum. Antennæ setaceæ, corpore breviores. mesosoma scabriusculus. metasoma oblongum, obtusissimum, opacum, absque ulla incisura, teretiusculum, subtus concavum, ac si visceribus destitutum : Macula diaphana, albida, utrinque versus basin. Aculeus exsertus, rigidus, recurvatus, vix abdomine longior. Pedes ferruginei exceptis tibiis nigris. Palpi filiformes.

Data used in the multi-access key

These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this pdf.

morphology
basic information	female	male
body length (mm):	(5) 5 - 7.5 (8.5)	(5) 5 - 7.5 (8.5)
number of antennal segments:	(23) 23 - 26 (28)	(26) 26 - 30 (31)
head, dorsal view
Head width : length	wide	wide
Temples narrowing - widening	parallel	parallel
Eye length : temple length	1.0 - 1.25	1.0 - 1.25
Roundness temple	medium, weak	medium, weak
POL : OD	2 - 3	2 - 3
Ocellar triangle shape	narrow	narrow
Excavation of head	25 - 35%, > 35%	25 - 35%, > 35%
head, lateral view
Head height : length	---	---
Eye height : length	---	---
Temple length : eye length	---	---
head, frontal view
Head width : height	---	---
Face width : height	---	---
Eyes converging ventrally	---	---
EH : MSL	---	---
Clypeus width : height	---	---
Clypeus extending above bottom of eyes	---	---
Tentorial pits	---	---
Shape of lower margin clypeus	---	---
antennae
Antennal shape	filiform, not widened, slightly widened, clearly widened	filiform, not widened
Segment 3 length : width	---	---
Penultimate segment length : width	---	---
Length of antenna : length of body	2: short, 3: long	4: very long
mesosoma, lateral view
Length : height	---	---
transverse carina	well developed	well developed
lateral teeth	present	present
mesosoma, ventral view
Prepectal carina lamelliform	indistinct	indistinct
legs
Hind femur length : width ratio	---	---
Hind tibia length : hind tarsus length ratio	---	---
Hind tibia (longest) spur length : metatars length ratio
wings
Vein 1-R1 length : pterostigma length	medium, long	medium, long
Vein r length : vein 3-SR length	short, long	short, long
Shape vein SR1 (straight / concave / convex)	concave	concave
S-shape vein SR1	not S-shaped	apically convex
cell M : cell Sm2	Sm2 medium, Sm2 small	Sm2 medium, Sm2 small
Pterostigma length : width ratio	medium	medium
Angle between radial vein (r) : vein 1-R1	sharp, medium	sharp, medium
metasoma, dorsal view
Length : width ratio of metasoma	short, medium	short, medium
Shape of metasoma	widest towards apex	widest towards apex
metasoma, lateral view
Length : height ratio of metasoma	short, medium	short, medium
posterior : anterior height ratio of metasoma	medium	medium
Position of maximum height	medium-posterior	medium-posterior, posterior
metasoma, ventral view
Metasoma posteriorly curved forwards	(distinctly) incurved	(distinctly) incurved
male apical aperture
Aperture width : metasoma width	no aperture	no aperture
Aperture shape	n. a.	n. a.
Median process shape	n. a.	n. a.
sculpture
head
general coarseness	coarse	coarse
clypeus
coarseness punctation	punctulate	punctulate
density punctation	---	---
face
sculpture type	rugose, reticulate	rugose, reticulate
sculpture direction	---	---
vertex and temple
sculpture type	striate-rugulose, transverse rugulose	striate-rugulose, transverse rugulose
mesonotum
sculpture type	notauli slightly distinct	notauli slightly distinct
scutellum
middle	smooth	smooth
lateral	reticulate / crenate	reticulate / crenate
metasoma
base - mid sculpture	longitudinally rugose / rugose-striate , rugose / reticulate	longitudinally rugose / rugose-striate , rugose / reticulate
sculpture at apex	rugose	rugose
coarse / fine boundary	base (to 50%)	base (to 50%)
color
head
mandibles color pattern	light tip	light tip
palpi, lightest color	black, dark brown	black, dark brown
antennae
scapus, lightest color	black, dark brown	black, dark brown
segment 3 and 4, lightest color	black, dark brown	black, dark brown
legs
fore coxae lightest colour	dark	dark
fore femur lightest colour	medium dark, medium light	medium dark, medium light
fore femur color pattern	base dark	base dark
hind femur lightest colour	medium dark	medium dark
hind femur color pattern	tip light, entirely light	tip light, entirely light
hind tibia lightest colour	medium dark	medium dark
hind tibia color pattern	wide light base	wide light base
hind basitarsus lightest colour	medium light	medium light
hind tarsus segment 2-3 lightest colour	dark	dark
wings
middle veins lightest colour	dark, medium dark	dark, medium dark
basal veins lightest colour	medium light, light	medium light, light
metasoma
metasoma colour pattern	entirely dark, color only on basal third	entirely dark, color only on basal third
metasoma lightest colour	dark, light	dark, light
metasoma base, colour pattern	entirely dark, 1, 2 or 4 spots	entirely dark, 1, 2 or 4 spots
metasoma base, light spots	n.a., 2 large spots	n.a., 2 small spots
metasoma base, light band	n.a.	n.a.

Chelonus inanitus in published keys

T4: Tobias, 1986

Key to the Insects of the European Part of the USSR Volume III. Hymenoptera. Part four. Chapter 16

Ay1: Aydogdu 2008

A new species of the genus Chelonus Panzer, 1806 (Hymenoptera: Braconidae: Cheloninae) from Western Anatolia (Turkey).

M: Marshall, 1885

Monograph of British Braconidae. Part 1
