Chelonus ibericus
authorTobias 2001
synonyms
body
shape♀ 4.3 mm, ♂ 4.2mm [T10]. ♂ 3.9 - 4.1 mm [TL]. ♀ 4.4 mm. [T14]
colorBody black [T10].
head
shapeHead behind eyes weakly widened, oval in front view; its width 1.9 times its length and 1.2 times height. Temples 1.25 times as long as transverse eye diameter. Base of ocellar triangle longer than distance from posterior ocellus to eye plus 1 diameter of ocellus. Distance between posterior ocelli 4 times diameter of ocellus. Longitudinal eye diameter 1.7 times transverse one, 1.7 times malar space. Width of face 2.3 times its height, 1.4 times transverse eye diameter. Height of face 1.2 times that of clypeus. Length of maxillary palpus 1.5 times malar space. ♂ Head narrowed behind eyes more strongly than that in female [T10]. ♂: Widened and rounded behind eyes, about as wide as mesosoma, 1.7 times as broad as long, in frontal view almost as broad as high. Ocelli small. Ocellar triangle shorter than OOL. POL 5 times longer than Od. Temples 1.4 times as long as eye (dorsal view). In frontal view eye 2.2 times as high as broad, 1.8 times as long as malar space. Face about twice as broad as high and 1.8 as broad as LO [eye width?], twice higher than clypeus. Maxillary palpi short, as long as height of face [TL]. The head is noticeably widened behind the eyes. - Head width 1.8 times its length, 1.2 times its height. Temples 1.25 times as long as transverse eye diameter. Width of ocellar triangle greater than OOL plus OD. POL is 4 times the diameter of the eye. Longitudinal diameter of eye 1.7 times transverse, 1.7 times height of malar space. Face width 2.3 times its height. Maxillary palp 1.7 times as long as the height of the face [T14].
sculptureVertex behind ocelli finely striate; face laterally with fine rugae fan-shapedly running downwards; clypeus punctate, its lower half with strigae [T10]. Head densely and finely pointed. Face fine transversal striate with longitudinal sculpture about eyes. Frons and vertex finely transversely striate. Temples finely longitudinally striate. Clypeus finely punctate, shining [TL]
colorPalpi brown [TL].
antenna
shape ♀Antennae as long as head and mesosoma combined; 3rd antennal segment 2.5 times, 4th 3 times, 6th twice, and 7th 1.5 times as long as wide; 5 apical segments beaded, as long as wide [T10]. Antennae equal to the total length of the head and mesosoma; length of 3rd antennal segment 3 times its width, 6th segment twice, 7th segment 1.5 times, five apical segments equal to their width [T14].
shape ♂Antennae 18-segmented; 3rd segment 3 times its width [T10][T14]. Scape widened, almost twice as wide as flagellum, 2.5 times as long as wide; 3rd antennal segment 3 times as long as wide [TL].
colorScape partially dark-brownish [TL].
mesosoma
shape♀ Length of mesosoma 1.4 times its height. Propodeum steeply sloping, with transverse carina and rather large, rounded lateral teeth [T10][T14]. ♂ Mesosoma 1.5 times as long as high. Propodeum with unclear medial longitudinal carinas, with well developed transverse carina and lateral tubercles [TL].
sculpture♀ Mesonotum densely rugulose-punctate; in posterior half, before scutellum, alveolate-rugulose, with predominance of striae. ♂: Anterior part of mesonotum punctate, with smoothed microsculpture, shining. [T10]. Mesonotum rugose-punctate, prescutellar depression strongly sculptured and area before it with longitudinal rugosity. Scutum anteriorly weakly punctate and shining. Sides of mesonotum roughly punctate. Scutellum finely punctate, shining. Propodeum rugulose, without clear medial longitudinal carinas and longitudinal elements [TL].
color
legs
shapeHind femur 3.3 times as long as wide. Hind tibia 4.5 times as long as wide; its inner spur 0.4 times as long as hind metatars. Hind tarsus as long as hind tibia, with 5th segment as long as 3rd and shorter than 2nd [T10]. ♂: Hind femur almost 4 times as long as broad. Outer spur of hind tibiae slightly longer than inner, almost reaching 0.5 length of hind metatars. 5th segment as long as 4th and 1.7 times shorter than 2nd [TL]. Hind femur 3.5 times as long as wide. Hind tibiae equal in length to hind tarsus [T14].
sculpture
color♀ Fore tibia and tarsus brown; middle tibia, and middle and hind tarsi dark brown. ♂ Legs darker than those in female, almost entirely black; [T10]. ♂ coxae dark, almost black; fore femora dark-brown with yellow apex, tibiae yellowish, tarsi yellowish with brown apex; hind femora dark, tibiae brown with dark third part, tarsi brown-yellowish with darker apex [TL].
wings
shapeMarginal cell 3 times as large as 2nd submarginal cell, 1-R1 as long as pterostigma. SR1 weakly S-curved, 4 times as long as r, 2.5 times as long as 2-SR; r about as long as 3-SR [T10].♂:1-R1 almost as long as length of pterostigma. Marginal cell 1.5 times greater than Sm2. 3-SR 1.2 times as long as r, 3 times shorter than SR1. 1-CU1 and cu-a equal in length [TL].
color♀ Wings hyaline in basal half, weakly infuscate in apical one; pterostigma and most part of veins brown; mediocubital, anal, and basal veins pale yellow. ♂ wings more uniformly infuscate; veins in basal half of wing darker [T10]. ♂: Wings faintly infuscate with a transparent belt along medial vein. Pterostigma and veins brown [TL].
metasoma
shapeMetasoma oblong-oviform, narrowed to base, reflexed apically by 0.1 of its length; its length 1.85 times its width and 2.8 times height [T10]. ♂: Carapace elongate-oviform, twice as long as maximal broad, laterally incurved on its 0.3 height at apex. In lateral view enlarged posteriorly, twice as high posteriorly as anteriorly [TL]. ♀ metasoma elongated-ovate, narrowed towards apex, bent apically anteriorly by 0.1 of its length, 1.7 times as long as wide. ♂ metasoma is oval, evenly rounded laterally [T14].
sculpture♀ Metasoma with rather coarse, undulate striae reaching its apex, ♂ Striae of metasoma less coarse than those in female, reaching only its apical third [T10]. ♂: Carapace basally with longitudinal rugulose undulations almost reaching its 2/3, apex without longitudinal sculpture [TL].
color
♀ ovipositor
♂ apertureApical abdominal opening slit-shaped, occupying entire width of posterior surface and third of lateral surface of carapace [T10][T14]. AMA chink-formed and narrowed laterally (posterior end), almost as broad as carapace; in back view, about 0.25 height, in lateral view about 0.25 - 0.3 times length of carapace [TL].
other info
distributionCZ [FE].
remarks
hosts
type description
Microchelonus ibericus Tobias sp. n. (Fig. 1, 9-14)
Material. Holotype: ♀, "Hispania, Segovia, Pradena," "1987.VI.18, leg. Podlussany." Paratype: ♂, "Hispania, Burgos, Borbadillo de Herreros, 1987.VI.9," "leg. J. & A. Podlussany."
Description. Female. Head behind eyes weakly widened, oval in front view; its width 1.9 times its length and 1.2 times height. Temples 1.25 times as long as transverse eye diameter. Base of ocellar triangle longer than distance from posterior ocellus to eye by 1 diameter of ocellus. Distance between posterior ocelli 4 times diameter of ocellus. Longitudinal eye diameter 1.7 times transverse one, 1.7 times malar space. Width of face 2.3 times its height, 1.4 times transverse eye diameter. Height of face 1.2 times that of clypeus. Length of maxillary palpus 1.5 times malar space. Antennae as long as head and mesosoma combined; 1st flagellar segment 2.5 times, 2nd, 3 times, 4th, twice, and 5th, 1.5 times as long as wide; 5 apical segments beaded, as long as wide. Length of meso-soma 1.4 times its height. Propodeum steeply sloping, with transverse carina and rather large, rounded lateral teeth. Radial cell 3 times as large as 2nd radiomedial one, with anterior margin as long as pterostigma. Third radial abscissa weakly S-curved, 4 times as long as 1st one, 2.5 times as long as 1st radiomedial vein; 1st abscissa about as long as 2nd. Hind femur 3.3 times as long as wide. Hind tibia 4.5 times as long as wide; its inner spur 0.4 times as long as lst segment of hind tarsus. Hind tarsus as long as hind tibia, with 5th seg-ment as long as 3rd and shorter than 2nd.
metasoma oblong-oviform, narrowed to base, reflexed apically by 0.1 of its length; its length 1.85 times its width and 2.8 times height. Vertex behind ocelli finely striate; face laterally with fine rugae fan-shapedly running downwards; clypeus punctate, its lower half with strigae. Mesonotum densely rugulose-punctate; in posterior half, before scutellum, alveolate-rugulose, with predominance of striae. metasoma with rather coarse, undulate striae reaching its apex. Body black; fore tibia and tarsus brown; middle tibia, and middle and hind tarsi dark brown. Wings hyaline in basal half, weakly infuscate in apical one; pterostigma and most part of veins brown; mediocubital, anal, and basal veins pale yellow.
Body length 4.3 mm.
Male. Head narrowed behind eyes more strongly than that in female. Antennae 18-segmented; 1st flagellar segment 3 times its width. Apical abdominal opening slit-shaped, occupying entire width of posterior surface and third of lateral surface of carapace. Anterior part of mesonotum punctate, with smoothed microsculpture, shining. Striae of metasoma less coarse than those in female, reaching only its apical third. Legs darker than those in female, almost entirely black; wings more uniformly infuscate; veins in basal half of wing darker.
Body length 4.2 mm.
Differential diagnosis. M. ibericus is closely related to M. rimulosus (Thomson, 1874); differing from its variation with swollen temples in the distinctly weaker striae of the metasoma and the wider apical abdominal opening in male (occupying no more than 0.2 of lateral surface of the carapace in M. rimulosus). Among the eastern-Palaearctic species, M. ibericus is closely related to M. nigrimembris Tobias (Tobias, 1992, 2000); differing from it, in addition to the head widened behind the ocelli, in the distinctly paler wings. Its distinctions from M. laplandicus sp. n., described below, are listed in the key.
Data used in the multi-access key
These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this
pdf.
| morphology |
| basic information | female | male |
| body length (mm): | (3.7) 3.7 - 4.2 (4.4) | (3.7) 3.7 - 4.2 (4.4) |
| number of antennal segments: | 16 | 18 |

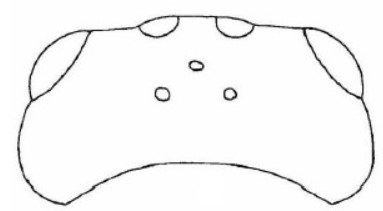

| head, dorsal view |
| Head width : length | narrow, wide | narrow, wide |
| Temples narrowing - widening | widening, strongly widening | widening, strongly widening |
| Eye length : temple length | <= 0.75, 0.75 - 1.0 | <= 0.75, 0.75 - 1.0 |
| Roundness temple | very strong, strong | very strong, strong |
| POL : OD | 3 - 4, > 4 | 3 - 4, > 4 |
| Ocellar triangle shape | narrow, wide, very wide | narrow, wide, very wide |
| Excavation of head | 15 - 25% | 15 - 25% |
| head, lateral view |
| Head height : length | --- | --- |
| Eye height : length | very short | very short |
| Temple length : eye length | --- | --- |
| head, frontal view |
| Head width : height | very narrow, narrow | very narrow, narrow |
| Face width : height | wide, very wide | wide, very wide |
| Eyes converging ventrally | --- | --- |
| EH : MSL | short | short |
| Clypeus width : height | --- | --- |
| Clypeus extending above bottom of eyes | --- | --- |
| Tentorial pits | --- | --- |
| Shape of lower margin clypeus | --- | --- |
| antennae |
| Antennal shape | --- | filiform, not widened |
| Segment 3 length : width | short, medium | medium |
| Penultimate segment length : width | short | --- |
| Length of antenna : length of body | 2: short | --- |
| mesosoma, lateral view |
| Length : height | short, medium | short, medium |
| transverse carina | present, well developed | present, well developed |
| lateral teeth | well developed | well developed |
| mesosoma, ventral view |
| Prepectal carina lamelliform | indistinct | indistinct |
| legs |
| Hind femur length : width ratio | medium | medium |
| Hind tibia length : hind tarsus length ratio | medium | medium |
| Hind tibia (longest) spur length : metatars length ratio | short | short |

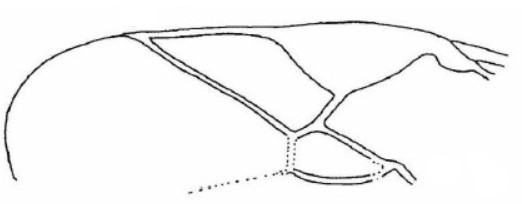

| wings |
| Vein 1-R1 length : pterostigma length | medium, long | medium, long |
| Vein r length : vein 3-SR length | short | short |
| Shape vein SR1 (straight / concave / convex) | straight or S-shaped, slightly convex, convex | straight or S-shaped, slightly convex, convex |
| S-shape vein SR1 | apically convex, apically convex | apically convex, apically convex |
| cell M : cell Sm2 | Sm2 large, Sm2 medium, Sm2 small | Sm2 large, Sm2 medium, Sm2 small |
| Pterostigma length : width ratio | short, medium | short, medium |
| Angle between radial vein (r) : vein 1-R1 | medium | medium |

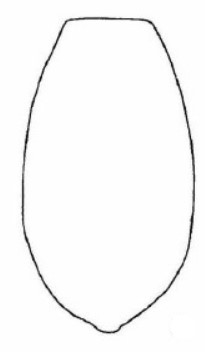

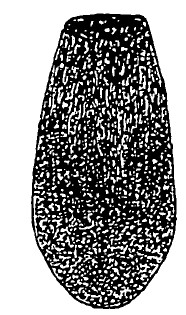

| metasoma, dorsal view |
| Length : width ratio of metasoma | short, medium | medium, long |
| Shape of metasoma | widest in middle, widest towards apex | widest towards apex |

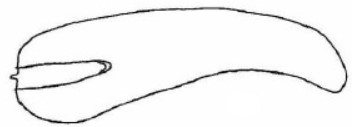

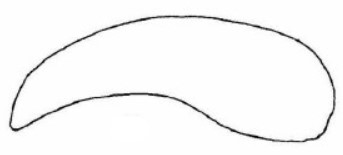

| metasoma, lateral view |
| Length : height ratio of metasoma | medium, long | medium, long |
| posterior : anterior height ratio of metasoma | medium, large | medium, large |
| Position of maximum height | medium-posterior | medium-posterior, posterior |
| metasoma, ventral view |
| Metasoma posteriorly curved forwards | just/slightly incurved | just/slightly incurved |
| male apical aperture |
| Aperture width : metasoma width | no aperture | large |
| Aperture shape | n. a. | elongate - slit |
| Median process shape | n. a. | horizontal oval |
| sculpture |
| head |
| general coarseness | fine | fine |
| clypeus |
| coarseness punctation | punctulate | punctulate |
| density punctation | --- | --- |
| face |
| sculpture type | striate, rugose | striate, rugose |
| sculpture direction | transverse-longitudinal, diagonal/concentric | transverse-longitudinal, diagonal/concentric |
| vertex and temple |
| sculpture type | striate (striolate) | striate (striolate) |
| mesonotum |
| sculpture type | notauli slightly distinct | notauli slightly distinct |
| scutellum |
| middle | punctate | punctate |
| lateral | punctate | punctate |
| metasoma |
| base - mid sculpture | striate-rugose, longitudinally rugose / rugose-striate | striate-rugose, longitudinally rugose / rugose-striate |
| sculpture at apex | rugose, rugulose | rugose, rugulose |
| coarse / fine boundary | mid (50 - 70%), apex (>70%) | mid (50 - 70%), apex (>70%) |
| color |
| head |
| mandibles color pattern | --- | --- |
| palpi, lightest color | brown, red | brown, red |
| antennae |
| scapus, lightest color | black, dark brown | black, dark brown |
| segment 3 and 4, lightest color | black, dark brown | black, dark brown |
| legs |
| fore coxae lightest colour | dark | dark |
| fore femur lightest colour | light | light |
| fore femur color pattern | tip light | tip light |
| hind femur lightest colour | dark, medium light | dark, medium light |
| hind femur color pattern | entirely dark, tip light | entirely dark, tip light |
| hind tibia lightest colour | medium dark | dark, medium dark |
| hind tibia color pattern | wide light base | entirely dark, wide light base |
| hind basitarsus lightest colour | dark, medium dark, medium light | dark, medium dark, medium light |
| hind tarsus segment 2-3 lightest colour | dark, medium dark | dark, medium dark |
| wings |
| middle veins lightest colour | medium dark | medium dark |
| basal veins lightest colour | light | medium light |
| metasoma |
| metasoma colour pattern | entirely dark | entirely dark |
| metasoma lightest colour | dark | dark |
| metasoma base, colour pattern | entirely dark | entirely dark |
| metasoma base, light spots | n.a. | n.a. |
| metasoma base, light band | n.a. | n.a. |
