Chelonus fumipennis

Chelonus fumipennis

authorTobias 1986

synonyms

body

shapeBody 3.2 - 3.5 mm [T4]. ♀ 3.0 - 3.3 mm, ♂ 3.5mm. [T14]. ♂ 3.8 (3.2 - 4.2) mm [TL].

colorThe body is black [T14].

head

shapeTemples 1.5 times as long as eye. Malar space 0.4 times the longitudinal diameter of eye. Face half as high as wide [T4]. The head is roundly narrowed behind the eyes, its width is twice its length. Temples equal in length to the transverse diameter of the eye. Base of ocellar triangle equal to OOL. POL is 3 times the diameter of the eye. The longitudinal diameter of the eye is twice the transverse one, 2.5 times the height of the malar space. The width of the face is twice its height [T14]. Roundly narrowed behind eyes, about temples narrower than about eyes, almost twice as broad as long, in frontal view 1.2 times as broad as high, almost as wide as mesosoma. Temples slightly longer than the transverse diameter of the eye. In frontal view eye 2.3 times as high as long, 1.5 times as long as malar space. Face about twice as broad as high and 1.8 as broad as longitudinal diameter of eye, twice higher than clypeus. Maxillary palpi as long as height of face [TL].

sculptureHead behind eyes mildly striate transversely [T4]. Face with grainy sculpture, with slight rugae. Vertex behind ocelli and temples finely transversely striated [T14]. Head finely pointed. Face finely longitudinally striate about eyes, weakly shining. Vertex partially but finely transversely striate. Temple finely longitudinally striate. Clypeus finely punctate, weakly shining.

colorPalpi black [T14]. Palpi dark-brown [TL].

antenna

shape ♀Antennae equal to the total length of the head and mesosoma; length of 3rd antennal segment 2.5 times its width; segments at apical part of antennae equal to their width [T14]. Antennae with: 16 segments, as long as head and mesosoma combined; scape widened, twice as wide as flagellum, 2.5 times as long as wide; 3rd antennal segment 3 times as long as wide, apical segments a little longer as wide [TL].

shape ♂Antennae 23 - 24-segmented [T4]. Antennae shorter than body; 18 - 23 segments, scape widened, 1.5 times as wide as flagellum, 3 times as long as wide; 3rd segment 3 times as long as wide, apical segments 1.5-2 times as long as wide [TL]. Antennae 22-24-segmented, two apical segments 1.3 times as long as wide [T14].

colorScape dark brown [TL].

mesosoma

shape♀♂ Mesosoma length 1.3 times its height. Propodeum with transverse carina and small lateral teeth [T14]. ♂ 1.5 times as long as high. Propodeum with two less distinct medial longitudinal carinas and a pair of lateral tubercles [TL]. ♂ Medial longitudinal carinas of propodeum are less well developed, and look like two small teeth at transverse carina. ♀ Propodeum with two clear medial longitudinal carinas ending at transverse carina with two small teeth [TL].

sculptureMesonotum quite densely punctate, with coarse wrinkles only before scutellum, sides of mesosoma with fine alveolar sculpture [T4]. ♀ Mesoscutum non-coarsely irregularly rugose in front of scutellum. ♂: Mesoscutum in front of scutellum with coarse longitudinal rugae combined with weaker transverse rugae [T14]. Mesonotum rugose-rugulose punctate. Scutum anteriorly very finely punctate and longitudinally striate, area before scutellum with some longitudinal rugosities. Sides of mesonotum roughly rugose-punctate with unclear transversal sculpture. ♂ Scutellum finely punctate, shining, ♀ scutellum distinctly undulate sculptured, weakly shining. Propodeum rugose-rugulose, with distinct longitudinal elements [TL].

color

legs

shape♀ Hind femur 3 times as long as wide. Hind tarsus slightly shorter than hind tibia. ♂ Hind femur 4 times as long as wide. [T14]. Hind femur 3.5 (♂) to 3 (♀) times as long as broad. Outer spur of hind tibiae longer than inner, 5th metatarsal segment as long as 3rd, 1.2 times shorter than 2nd [TL].

sculpture

color♀ Fore and middle tibiae brownish yellow. ♂: Fore and middle tibiae yellowish brown, hind tibia with brownish yellow band. [T14]. Coxae dark, almost black; fore femora brown, tibiae yellowish, tarsi yellowish with brown apex; hind femora dark-brown; tibiae brownish at apex and basal part with a yellow belt in middle part; tarsi brown-yellowish with darker apex [TL].

wings

shapeThe marginal cell of the fore wing is twice (♀) or 1.5 times (♂) as large as the 2nd submarginall cell; 1-R1 is equal to or slightly shorter than the length of the pterostigma [in figures: 0.6-0.78]. 3-SR is slightly longer than r, SR1 is significantly concave inside the marginal cell. [T14]. ♂: 1-R1 as long as length of pterostigma. Cell Sm2 comparatively big, 1.5 times (♂) or 2 times (♀) smaller than marginal cell. 3-SR almost as long as r, 4 times shorter than SRI. 1-CU1 shorter than (♂) or equals (♀) cu-a [TL].

colorWings distinctly darkened, with pale transverse strip in middle [T4]. The wings are strongly (♀) or more or less strongly (♂) darkened [T14]. Wings moderately infuscate with a light belt on the course of the medial vein. Pterostigma dark-brown, veins brown [TL].

metasoma

shape♂ Metasoma 2 times as long as wide [T4]. ♀ Metasoma oval, apically bent forward by 0.1 times its length, 1.7 times as long as wide, ♂ metasoma ovate, slightly angular at apex, 1.9 times as long as wide [T14]. ♂ Metasoma oval-elongate, twice as long as maximal broad. In lateral view enlarged posteriorly, about 3 times as high posteriorly as anteriorly. ♀ Carapace oval-elongate and incurved on 0.25 height of apex, about twice as long as maximal width of its middle part. In lateral view enlarged posteriorly, 2.5 times as high posteriorly as anteriorly. [TL].

sculptureMetasoma in basal half with intensely wavy, weak longitudinal rugae [T4]. Metasoma in the basal half with non-coarse, tortuous and (strongly ♂) anastomosing longitudinal rugae [T14]. ♂ Carapace with longitudinal winding undulations on first 2/3, apex without longitudinal elements of sculpture. ♀ Carapace strongly longitudinally rugulose with almost rectilinear undulations at its 2/3, vanishing towards apex [TL].

color

♀ ovipositorOvipositor short not protruded from carapace [TL].

♂ apertureAperture in hind part slit-shaped, occupies 1/5 metasomal length in lateral view [T4]. Aperture chinktriangle-formed; in back view of posterior end about 0.25 height of carapace and almost as wide as carapace, in lateral view 1/4 or 1/5 length of carapace [TL].

other info

distributionCZ [FE].

remarks

hosts

figures

fig. 1: ♀ metasoma, dorsal view (Tobias & Lozan 2003)	fig. 2: ♀ metasoma, lateral view (Tobias & Lozan 2003)	fig. 3: ♂ head in dorsal view (Tobias & Lozan 2003)
fig. 4: ♂ part of fore wing (Tobias & Lozan 2003)	fig. 5: ♂ part of fore wing (Tobias & Lozan 2003)	fig. 6: ♂ part of fore wing (Tobias & Lozan 2003)

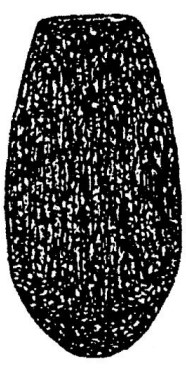

fig. 7: ♂ metasoma, dorsal view (Tobias & Lozan 2003)	fig. 8: ♂ metasoma, lateral view (Tobias & Lozan 2003)	fig. 9: ♂ metasoma, lateral view (Tobias & Lozan 2003)
fig. 10: ♂ metasoma, lateral view (Tobias & Lozan 2003)	fig. 11: ♂ metasoma, posterior view (Tobias & Lozan 2003)	fig. 12: ♂ metasoma, posterior view (Tobias & Lozan 2003)
fig. 13: ♂ metasoma, posterior view (Tobias & Lozan 2003)

references

code	reference	type of info
T4	Tobias 1986	Tk
T14	Tobias 2010	dk
TL	Tobias & Lozan 2003	dkf
FE	van Achterberg 2021	Fauna Europaea
legend:	Type description \| Redescription \| description \| in key \| comment \| nom. nov. \| figure(s) \| photo(s)

links

Fauna Europaea

photos

type description

Wings distinctly darkened, with pale transverse strip in middle. Temples 1.5 times as long as eye. Genae 2/5 as high as longitudinal diameter of eye. Face half as high as wide. Antennae 23—24-segmented. Abdominal shield 2 times as long as wide, aperture in hind part slit-shaped, occupies 1/5 abdominal length in lateral view. Head behind eyes mildly striate transversely. Mesonotum quite densely punctate, with coarse wrinkles only before scutellum, sides of mesomesosoma with fine alveolar sculpture. metasoma in basal half with intensely wavy, weak longitudinal rugae.

Body 3.2—3.5. Moldavia M. fumipennis Tobias, sp. n.

Holotype: Male, Rashkov, slope, 2.VIII. 1967 (Talitskii). Paratypes: 2 males, B. Malokshi, 2.VIII. 1967 (Talitskii); 1 male, Karmanovo, 18.V. 1967 (Talitskii).

Data used in the multi-access key

These data are collected from the species descriptions and redescriptions, from published figures and photographs and from own measureements and observations. For a description of the different variables and value classes see this pdf.

morphology
basic information	female	male
body length (mm):	(3.2) 3.2 - 4 (4.2)	(3.2) 3.2 - 4 (4.2)
number of antennal segments:	16	(18) 18 - 24 (25)
head, dorsal view
Head width : length	narrow, wide	narrow, wide
Temples narrowing - widening	parallel	parallel
Eye length : temple length	<= 0.75, 0.75 - 1.0	<= 0.75, 0.75 - 1.0
Roundness temple	strong, medium	strong, medium
POL : OD	3 - 4	3 - 4
Ocellar triangle shape	narrow	narrow
Excavation of head	15 - 25%, 25 - 35%	15 - 25%, 25 - 35%
head, lateral view
Head height : length	---	---
Eye height : length	short, long	short, long
Temple length : eye length	very short, short	very short, short
head, frontal view
Head width : height	very narrow, narrow	very narrow, narrow
Face width : height	wide	wide
Eyes converging ventrally	---	---
EH : MSL	very short, short	very short, short
Clypeus width : height	---	---
Clypeus extending above bottom of eyes	---	---
Tentorial pits	---	---
Shape of lower margin clypeus	---	---
antennae
Antennal shape	---	filiform, not widened
Segment 3 length : width	short, medium	medium
Penultimate segment length : width	short	medium, long
Length of antenna : length of body	2: short	3: long, 4: very long
mesosoma, lateral view
Length : height	short, medium	short, medium
transverse carina	present	present
lateral teeth	weak, small, short	weak, small, short
mesosoma, ventral view
Prepectal carina lamelliform	indistinct	indistinct
legs
Hind femur length : width ratio	short, medium, long	short, medium, long
Hind tibia length : hind tarsus length ratio	short, medium	short, medium
Hind tibia (longest) spur length : metatars length ratio
wings
Vein 1-R1 length : pterostigma length	medium, long	medium, long
Vein r length : vein 3-SR length	short	short
Shape vein SR1 (straight / concave / convex)	slightly concave, straight or S-shaped	slightly concave, straight or S-shaped
S-shape vein SR1	not S-shaped	not S-shaped
cell M : cell Sm2	Sm2 large, Sm2 medium	Sm2 large, Sm2 medium
Pterostigma length : width ratio	short, medium	short, medium
Angle between radial vein (r) : vein 1-R1	medium, blunt	medium, blunt
metasoma, dorsal view
Length : width ratio of metasoma	medium	medium
Shape of metasoma	narrowing to apex, widest in middle, widest towards apex	narrowing to apex, widest in middle, widest towards apex
metasoma, lateral view
Length : height ratio of metasoma	medium	medium
posterior : anterior height ratio of metasoma	medium	large
Position of maximum height	medium, medium-posterior	medium-posterior, posterior
metasoma, ventral view
Metasoma posteriorly curved forwards	just/slightly incurved	just/slightly incurved
male apical aperture
Aperture width : metasoma width	no aperture	large
Aperture shape	n. a.	elongate - slit
Median process shape	n. a.	horizontal, nearly round, horizontal oval
sculpture
head
general coarseness	fine	fine
clypeus
coarseness punctation	punctulate	punctulate
density punctation	---	---
face
sculpture type	striate, rugose	striate, rugose
sculpture direction	transverse-longitudinal	transverse-longitudinal
vertex and temple
sculpture type	striate (striolate)	striate (striolate)
mesonotum
sculpture type	---	---
scutellum
middle	punctate	punctate
lateral	rugulose, rugose / striate	rugulose, rugose / striate
metasoma
base - mid sculpture	longitudinally rugose / rugose-striate	longitudinally rugose / rugose-striate
sculpture at apex	rugulose	rugulose
coarse / fine boundary	base (to 50%), mid (50 - 70%)	base (to 50%), mid (50 - 70%)
color
head
mandibles color pattern	---	---
palpi, lightest color	black, dark brown	black, dark brown
antennae
scapus, lightest color	black, dark brown	black, dark brown
segment 3 and 4, lightest color	black, dark brown	black, dark brown
legs
fore coxae lightest colour	dark	dark
fore femur lightest colour	medium dark	medium dark
fore femur color pattern	entirely light	entirely light
hind femur lightest colour	dark	dark
hind femur color pattern	entirely dark	entirely dark
hind tibia lightest colour	medium dark, medium light	medium dark, medium light
hind tibia color pattern	narrow light ring	narrow light ring
hind basitarsus lightest colour	medium light	medium light
hind tarsus segment 2-3 lightest colour	medium dark, medium light	medium dark, medium light
wings
middle veins lightest colour	dark, medium dark	dark, medium dark
basal veins lightest colour	medium dark	medium dark
metasoma
metasoma colour pattern	entirely dark	entirely dark
metasoma lightest colour	dark	dark
metasoma base, colour pattern	entirely dark	entirely dark
metasoma base, light spots	n.a.	n.a.
metasoma base, light band	n.a.	n.a.

Chelonus fumipennis in published keys

T4: Tobias, 1986

Key to the Insects of the European Part of the USSR Volume III. Hymenoptera. Part four. Chapter 16

TL: Tobias & Lozan 2003

Central-European species of Microchelonus Szépligeti (Hymenoptera, Braconidae) with very big apical metasomal aperture of males.

T14: Tobias, 2010

Palearctic species of Microchelonus Szépligeti (Hymenoptera: Braconidae, Cheloninae): key to species.
